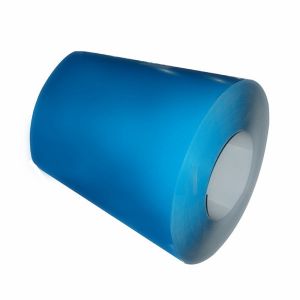

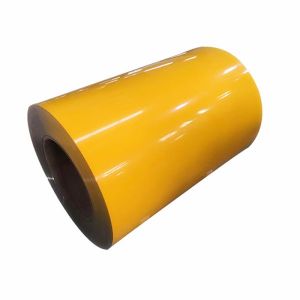

    Q195 PVDF Coating Prepainted Galvanized Steel Coil PPGL Oiled

    Ask Lasest Price
    Brand Name : TISCO BAOSTEEL
    Model Number : Color Coated Coil
    Certification : SGS BV
    Price : To be negotiated
    Payment Terms : L/C, T/T
    Supply Ability : 8,000 ton per month
    Delivery Time : 10-15 days after advance payment
    • Product Details
    • Company Profile

    Q195 PVDF Coating Prepainted Galvanized Steel Coil PPGL Oiled

    Wholesale low price Color Coated Prepainted Galvanized Steel Coil/ppgi/ppgl


    Specification
    Name
    PPGL Coil
    Thickness
    0.12-2.00mm
    Width
    600-1500mm
    Single Weight
    3-8MT
    Zinc Coating
    30-270g/m2
    Steel Gardes
    TDC51D2, TDC51D+AZ, TDC51D, GR. B, SPCC, SPHC, DX51D, ect.
    Standard
    AISI, GB, JIS
    Top Paint
    20MIL
    Back Paint
    7MIL
    Packing

    Wrapped by plastic film and waterproof paper, and then fastened on wooden pallet.

    Or as you request.
    Used
    Building material, roof, profile, pipe making, furniture making, etc.
    Supply Ability
    50000MT per month

    Structure of color-coated steel sheet

    1. Backing Coating 2. Primer Coating 3. Conversion
    4. Zinc Coating 5. Cold-rolled Sheet
    Content
    Performance of PE Coating
    Performance of PVDF Coating
    Color Difference
    ∆E ≤ 2.0
    ∆E ≤ 1.5
    Gloss Difference
    ≤5
    ≤5
    T-bend
    ≤3T
    ≤3T
    Adhesion Grade
    0
    0
    Impact
    ≥20kg.cm
    ≥50kg.cm
    Solvent Resistance
    200 times no break
    200 times no break
    Acidity Resistance
    5% HCL 24hrs no change
    5% HCL 24hrs no change
    Alkali Resistance
    5% NaOH 24hrs no change color
    5% NaOH 24hrs no change color
    Salt Spray Resistance
    720hrs ≤Grade le
    720hrs ≤Grade le
    Abrasion Resistance
    ≥5L/μm
    ≥5L/μm

    Applications


    1. For constructional exterior curtain walls, ACP of aluminum composite panel, Decorative Renovation Buildings, Building Facades, Siding, Window, Exterior and Interior Cladding Wall Panel, Indoor and Outdoor Ceiling, Roller Shutter Doors, Roofing Material and so on.
    2. Eaves Trough, Rain Gutters and Downspouts, Soffits and so on.
    3. Decorative renovation for storey-added old buildings, Wallboard and ceilings for tunnels.
    4. Channel Letters, Advertisement board, display platforms, LED Signs, UV printing, Advertising Boards, Billboards, Signboards, Wallboards and so on.
    5. Raw materials in industrial purpose.
    6. Material for Vehicle Bodies, Yacht Bodies, Boat Bodies, Bus Body, and so on.
    7. Fan blade sheets, louver window shades blinds.
    Color Selection
    Black
    White
    Orange
    Red
    Green
    Blue
    Purple
    Yellow
    Brown
    Other Flower Color Type
    Can be customized color
    Packing & Delivery
    Structure of Packing
    1. Metal Band Strapping 2. Outside Diameter 3. Label 4. Protective Steel Sheet 5. Water and Rustroof Paper 6. Steel Sheet
    Shipping & Delivery
    Shipment Port

    1. Xingang, Tianjin, China

    2. Other port in China
    Delivery Time
    within 30 days after receiving 30% deposit or copy of LC at sight.

    FAQ

    Q:Can you send samples?
    A:Of course, we can send samples to all parts of the world, our samples are free, but customers need to bear the courier costs.

    Q:What product information do I need to provide?
    A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.

    Q:What are the shipping ports?
    A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.

    Q:About product prices?
    A:Prices vary from period to period due to cyclical changes in the price of raw materials.

    Q:What are the certifications for your products?
    A:We have BV, SGS, EWC and other certifications.

    Q:How long does your delivery time take?
    A:In general, our delivery time is within 30-45 days, and may be delayed if the demand is extremely large or special circumstances occur.

    Q:Can I go to your factory to visit?
    A:Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.

    Q:Does the product have quality inspection before loading?
    A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.

    Q:How to pack the products?
    A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.

    Q:What is your working time?
    A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.
